Rupes Nano (ibrid technology) Dismantle Pictorial

Updated: Nov 8, 2020


Pictorial by: Tony Kiger

For Rupes Nano parts: https://rupesusa.com/wp-content/uploads/2018/03/HR81L-HR81ML-interactive-parts-diagram2018.02.21.pdf


For warranty support:

https://rupesusa.com/repairs/





Removal of screw in engagement lever




Prying up the unscrewed side of the lever. It will pop off the other side for removal.

Removed lever


5 screws need to be removed along the side of the Rupes Nano

With the battery removed, on the bottom side of the casing you will find a "U" shaped clip that needs to be pulled out to allow separation of the plastic body

"U" shaped clip. Retainer to hold body together


Separating the plastic body


Plastic indicator light cover

Shown motor, trigger, speed dial and the joining of the parts

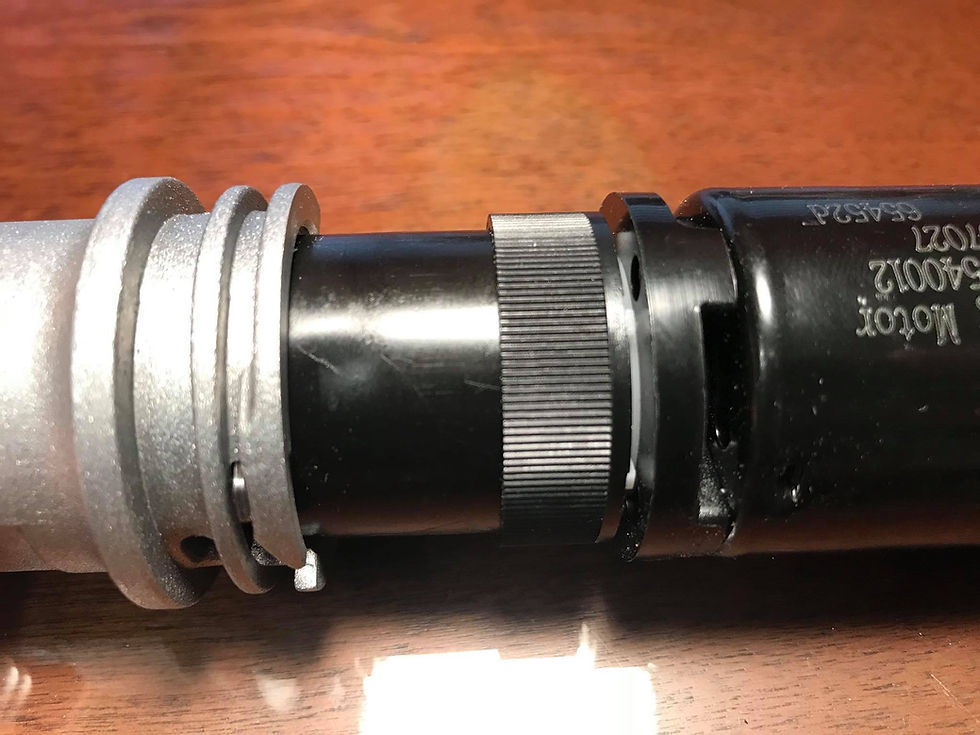

Separation of long neck and motor

Input of motor into neck

Connector to motor

Gears in connector

Motor removed




Speed dial and trigger removed

Battery connection points shown

Connections to motor

Plastic slide lock sleeve


Disengaged motor from gear


Separation of plastic gearing from motor and spindle





Removal of lock out cap and spring

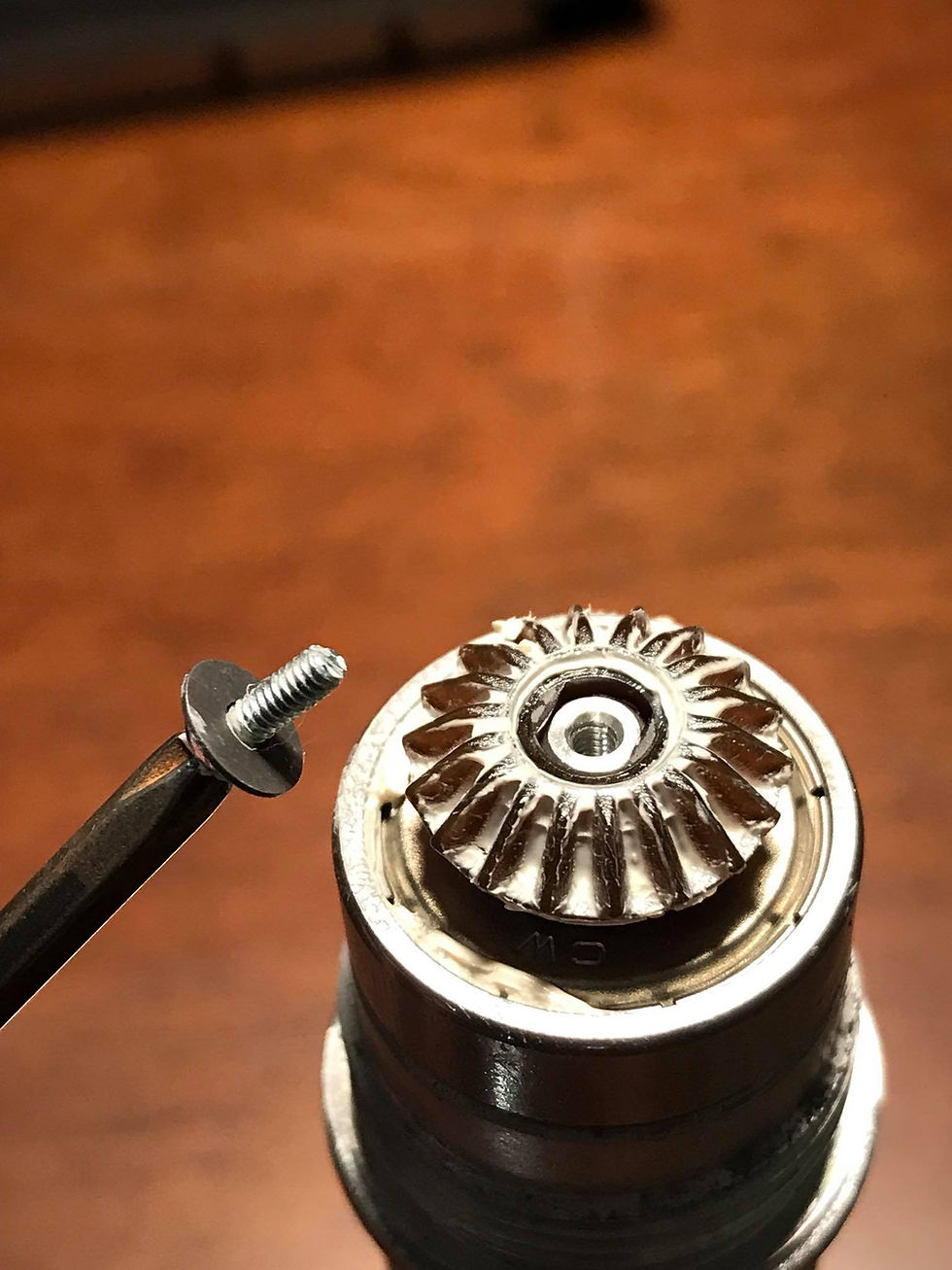

Removal of center drive shaft












Hope this helps if you are in need of repairing you own tools!
